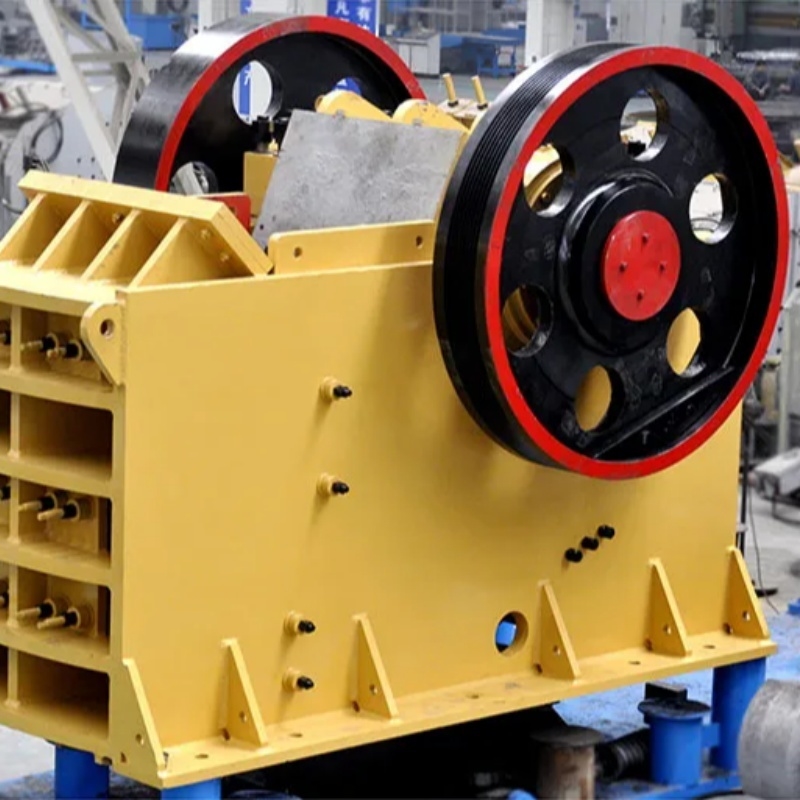

Overload Protection Function PEY Series Hydraulic Jaw Crusher

Grote Afbeelding : Overload Protection Function PEY Series Hydraulic Jaw Crusher

Productdetails:

Place of Origin:	Henan, China
Merknaam:	ZTIC
Certificering:	ISO/CE
Model Number:	Stone Crusher Machine

Betalen & Verzenden Algemene voorwaarden:

Minimum Order Quantity:	1 Set/Sets
Prijs:	negotiate
Payment Terms:	L/C, T/T
Supply Ability:	5000 Set/Sets per Year

Contact

Gedetailleerde productomschrijving

Condition:	New	Application:	Steel slag
Warranty:	12 month	Name:	PEY Series Hydraulic Jaw Crusher
Place of Origin:	Henan, China	Used:	Metallurgy, mining, chemical industry, cement, construction
Type:	Stone Crusher Machine	Max. Feed Size（mm）:	340
Discharge Opening Size（mm）:	40-90	Capacity （m3/h）:	16-40
Main Shaft Rotating Speed（r/min）:	300	Power （kw）:	45
Weight （kg）:	8800

Overload Protection Function PEY Series Hydraulic Jaw Crusher

PEY series hydraulic jaw crushers have protection functions. When unbreakable material is crushed, the load of the machine will suddenly increase and the machine can be automatically unloaded immediately with hydraulic protection, so it avoids impacting the body of the machine due to the sudden increase in load. It effectively solves the "steel clutch" problem of materials and is suitable for crushing metallurgical residues such as slag.

Operating principle
The material enters the crushing chamber through the feed port, and the moving jaw plate and the fixed jaw plate reciprocate and break the material, and the crushed material is discharged from the discharge port. Under overload, the hydraulic system realizes overload withdrawal action through the retractable elbow plate supporting cylinder to protect the body.

Features

Overload protection: When encountering non-breakable objects, the hydraulic protection device will automatically unload to avoid impact on the body.
Automatic iron discharge: It can automatically discharge non-breakable objects, solve the problem of "steel stuck", and achieve continuous production without stopping.
Single hydraulic cylinder design: The single hydraulic cylinder supported by the hydraulic station can not only adjust the size of the discharge port, but also unload the discharge iron to avoid the phenomenon of double-acting cylinders being out of synchronization.
Intelligent control: comes with a hydraulic station and PLC automatic control system, equipped with position sensors, which can effectively display the discharge size.

Performance Parameter Of Stone Crusher Machine

Specification	Max. Feed Size(mm)	Discharge Opening Size(mm)	Capacity (m³/h)	Main Shaft Rotating Speed(r/min)	Power (kw)	Weight (kg)
PEY400×600	340	40-90	16-40	300	45	8800
PEY400×750	340	20-70	30-50	300	30	13500
PEY300×1300	250	20-90	10-65	300	75	18710
PEY500×750	425	35-100	18-45	275	55	16000
PEY600×900	500	75-125	32-60	255	75	23000
PEY750×1060	630	170-300	60-200	250	90	35600
PEY900×1060	720	230-350	180-280	250	110	36700

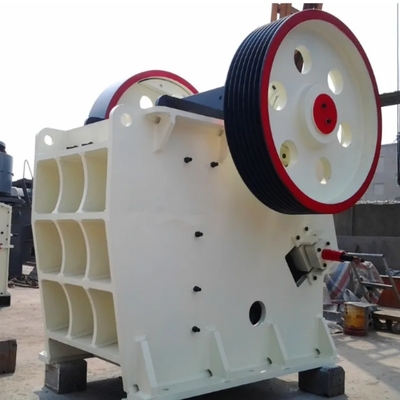

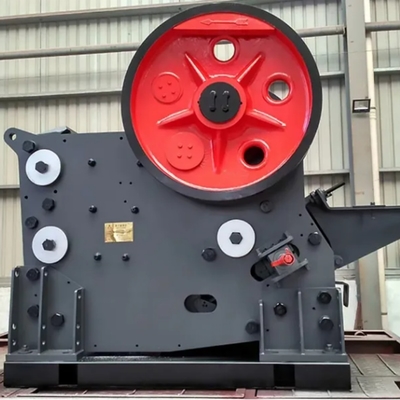

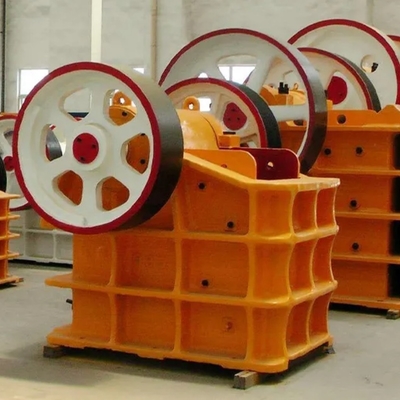

Product Display Of Stone Crusher Machine

Overload Protection Function PEY Series Hydraulic Jaw Crusher 0

Stone Crusher Machine

FAQ

Q: Why we believe in luoyang zhongtai industries co., ltd:
A: 1. More than 30 years experience.
2.We are the leading professional supplier of mining machinery, construction machinery, machines casting and forged parts.
3. All products achieved ISO9901:2000 quality management certificate and CE, ROHS certificates.

Q:Delivery time:
A: Parts lead time 1-2months, machines 2-3months.

Q:Payment terms:
A: Accept payment type: T/T, L/C, Western union,Cash.
30% deposit when signed contract. Full payment paid before shipping.

Q: Quality warranty?
A: Guarantee time: one year for main machinery. If something wrong we will provide the technical advice and find solution immediately. For those wearing parts we guarantee high quality parts for long-term supply.

Q: After sales service?
A: We can supply technical guide for machines running test and parts maintenance if end user needs.
